PARAMETRIC ENVELOPE

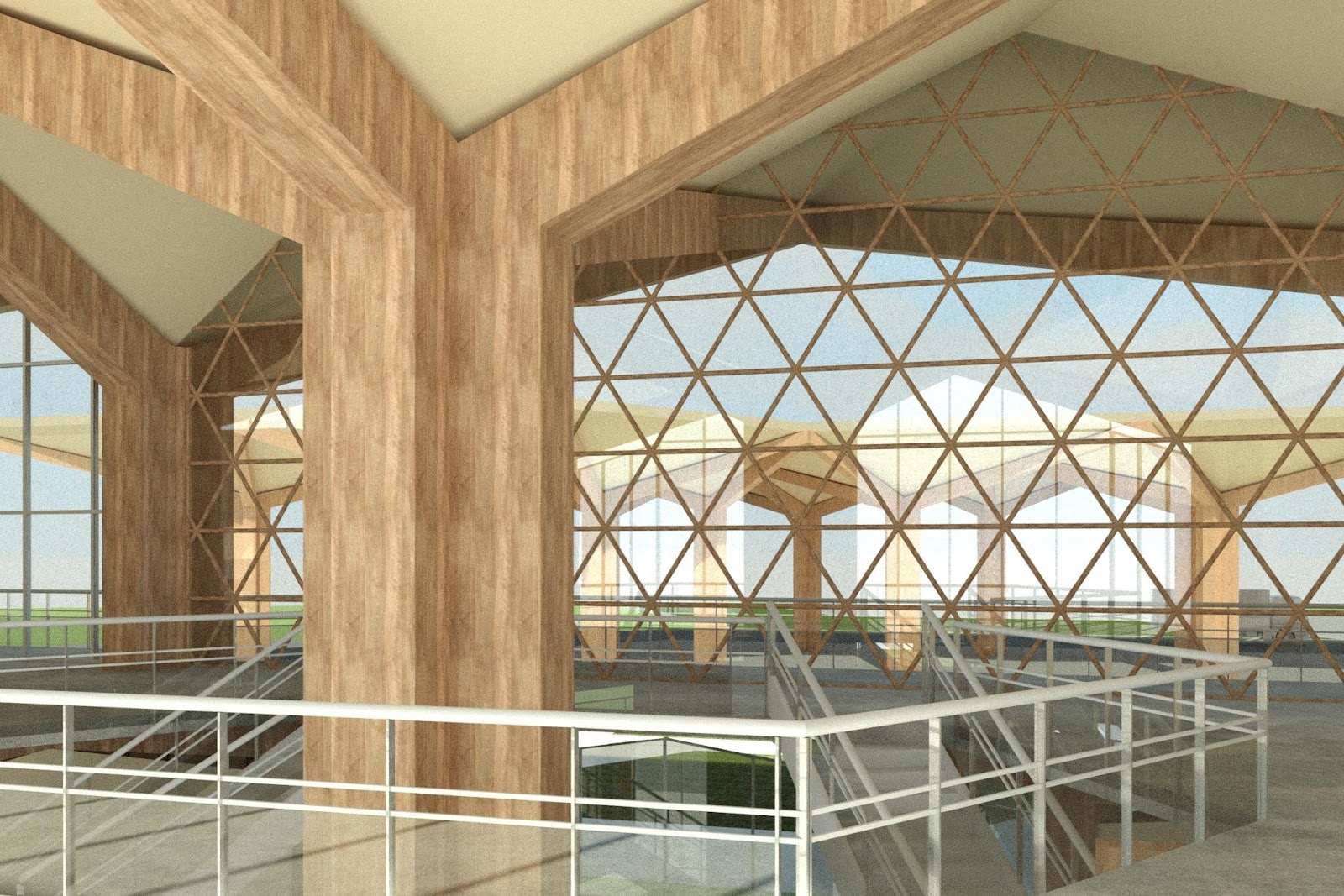

Parametric Envelope

The parametric envelope consists of two levels of family:

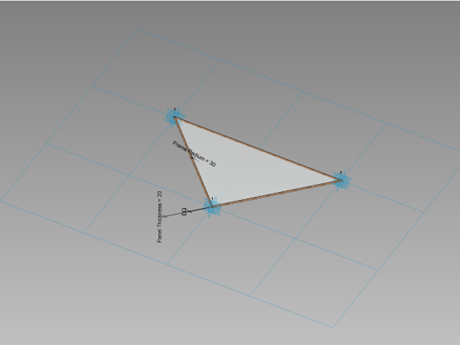

1. Panel Family:

a. Create a new family using the Curtain Panel Pattern Based template and select the Triangle (Flat) pattern.
b. Use the Create Solid Form tool to design the geometry of the panel and frame.
c. Set the parameters for Frame Radius and Panel Thickness, then associate their materials with new Family Parameters so that they can be edited in the next level, the Envelope Family.

2. Envelope Family:

a. Create a new family using the Conceptual Mass template. Draw the profile based on the desired shape of the envelope and use Create Solid Form to model it.
b. Divide the surface and select the previously created Triangle (Flat) Panel family as the pattern for the division.
At this level, the panel parameters from the previous level can be modified by using the Edit Type option in the Properties Tab. Additionally, the division pattern can be modified by changing the U Grid and V Grid settings under the Properties Tab.
